WG-90(new )

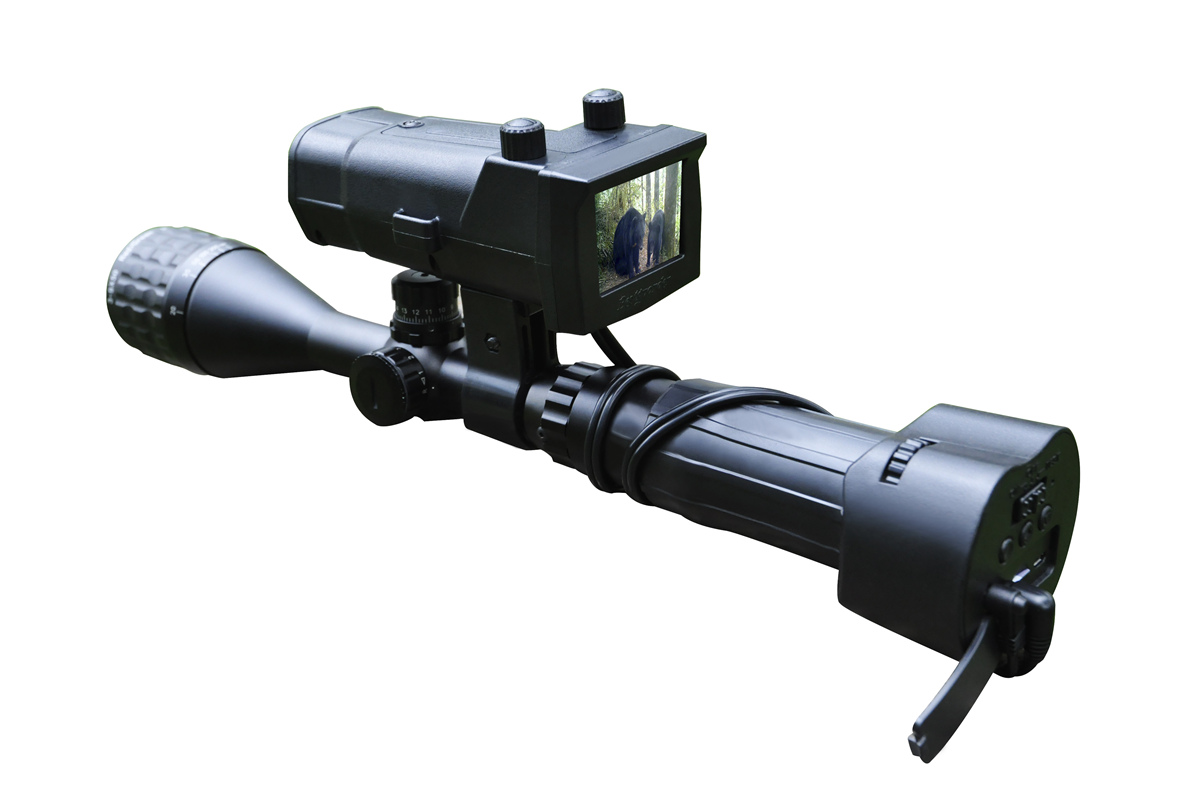

Scope mounted infrared digital night vision systems




Scope mounted infrared digital night vision systems with 4.3 or 2.4 ” LCD

Model No: WG-90two model: 2.4” LCD or 4.3 LCD

Patent No: 006314332-0001006315495-0001Europe201730499740.9China

2968393329683934 America


Suitable for use any rifle,Ultra clear night vision,No need to re-zero,NO ambient light required.

60 second installation,4.3or 2.4” TFT display,waterproof IP66,can be used both day and night,Recharge able Lithium lon battery,All-in-one night vision system,Wi-Fi share capability,Remote viewing via iOS & Android APP

Identification range 400 meters dependant on the scope.

1080 x 720 frame resolution, Wi-Fi share capability.

4 or 2 *18650 Lithium-ion battery 10000mAh. Operational run time up to 15Hr approx. (6Hrs on max IR).

1/4 CMOS vs image-intensifier tube

Build In 4.3or 2.4”TFT display, View Large LCD Screen

Resolution of Screen: 640*480

PEG: 2592*1944,1600*1200,640*480


TF card: up to 32G(no included)

Adjustable eyepiece

Powerful infrared spotlight

1300ft /400M viewing range

Field of View: 9°

F for Objective lensF=1.2

Infrared illuminator:3PCS  850NM 3W Infrared LED

Time stamp:Date and time on picture and video

Observing Distance(Low Light Environment):1m~∞

Observing Distance(Full Dark Environment): 1300ft /400M


Working Power Voltage:4.5-6V or 6V Power bank

Rechargeable Battery: 4 or 2  *18650 lithium,alkaline or power bank

Up to 15hours runtime without the use of infrared illuminator.

Up to 6 hour with IR illuminator on.

Weight excluding the battery 600g

TV Out :Device be a live Infrared surveillance camera connecting TV with TV cable

USB: Micro USB2.0

AV supporting:NTSC/PAL

Water Resistance StandardIP66

Operating Temperature Range:-30-55°(Storage temperature: -40°C - 70°C)
