Product
Home Product digital nightvision

NV-500(new product)

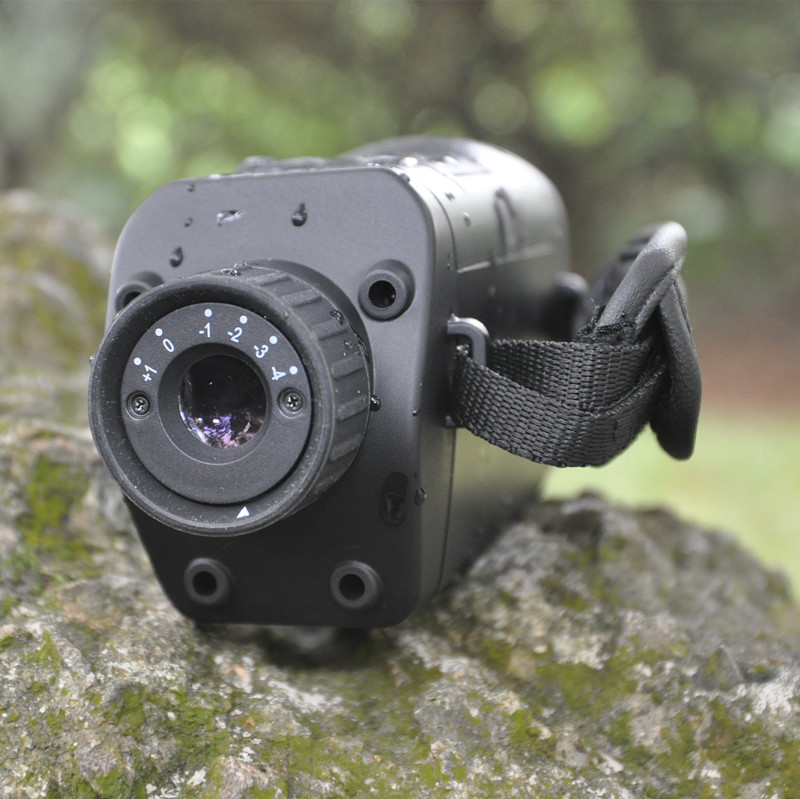

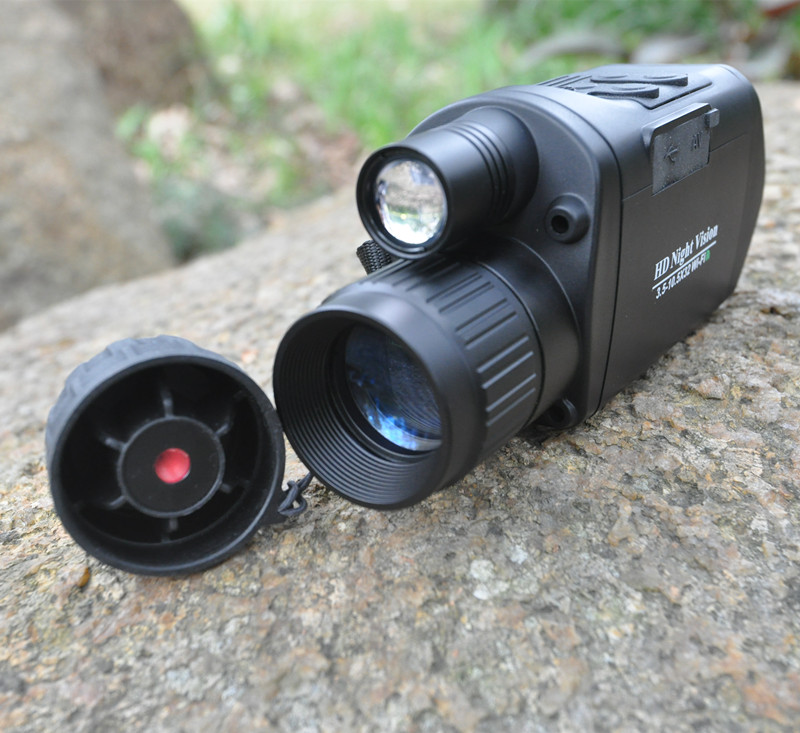

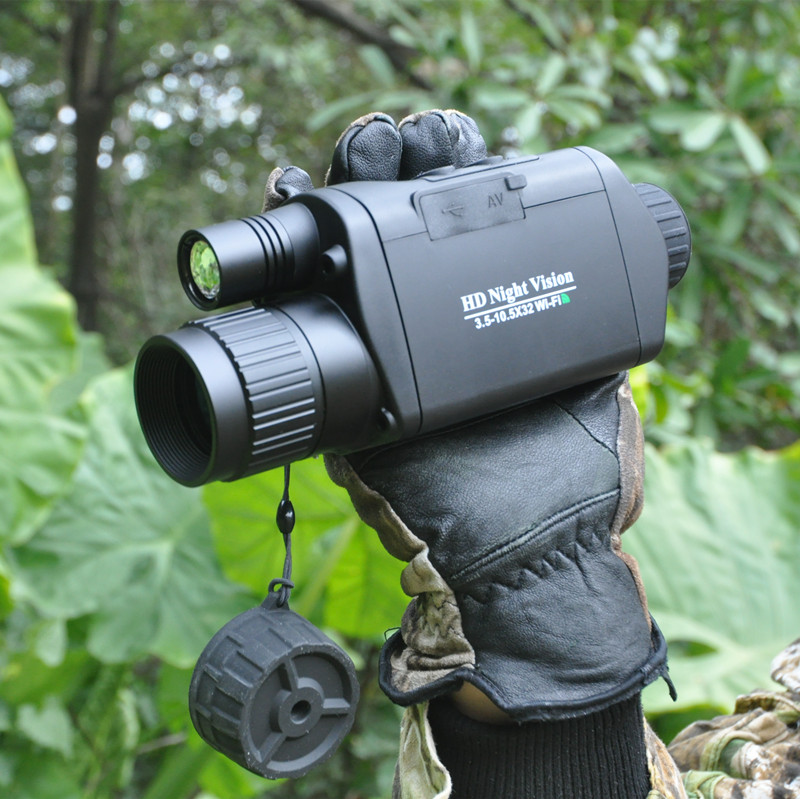

3.5-10.5x32 WI-FI Digital Night Vision Monocular 350m Range Takes 720p Video with 1.5” TFT LCD






FEATURES


3.5-10.5x32  WI-FI Digital Night Vision Monocular 350m Range Takes  720p Video with 1.5 TFT LCD

Model NoNV-500

Patent No:(Europe004705028-0001)(China:201730367702.8(America:29636427)



Night Vision Uses:

Hunting,Scouting game

Security and surveillance

Camping fun/exploring caves

Nighttime navigation

Night fishing and boating

Wildlife observation

Search and rescue



Specification

4 modes (Photo,Video ,Playback,Delete)

Outstanding optical clarity, high performance night vision

Video out capable

★Wide Dynamic Range  High-sensitivity 1/3 CMOS Sensor

★In-view 1.5” TFT display

★TF card: Support SDHC 4GB~32GB SD Card (no included)

Adjustable eyepiece

Powerful infrared spotlight,5 level IR switch

★1150ft /350M viewing range

★Magnification(optical): 3.5

★Objective Size:φ32mm

★Digital Zoom:x1.5/x2/x3.

Angle Of View:   9°

Aperture:F=1.2

Diopter adujustment +100°~ -400°

Objective Aperture  32mm

Exit Pupil Distance 15mm

Resolution TFT LCD:320x240

WI-FI:Android or IOS,free APP

Infrared illuminator: 3W ,850NM

★JPEG: 1280*720,640*480

★Video:1280*720,640*480@30FPS

Observing Distance(Low Light Environment):2m~∞

★Observing Distance(Full Dark Environment): 1150ft /350M

Time setting: YYYY/MM/DD HH:MM (24H)

TV Out:PAL or NTSC,50/60HZ

Power save: (Off/1 min/ 5min/10 min)

★Language:English, French,German,Swedish,Japanese

& Russian,Spanish

External Power bank supply - DC 5V/1A

Rechargeable Battery: 4*AA, 4.5V-6V,lithium,alkaline or NI-MH Battery,Battery low warning

Up to 9 hours runtime without the use of infrared illuminator.

Up to 3-5 hour with IR illuminator on.

★Built-in 1 tripod mountable

★TV Out :Device be a live Infrared surveillance camera connecting TV with TV cable

USB:1.1

★PC camera function:YES

Water Resistance Standard:IPX4

Operating Temperature Range:-30-55°(Storage temperature: -40°C - 70°C)

CE,FCC.RoHs



Accessories:

User's Manual  *1

Cleaning Cloth  *1

Pouch  *1

USB Cable *1

TV Cable *1

Neck Strap *1



Packing:

Digital night vision: 190mmx64mmx54mm [L / W / H]

Digital night vision Weight:   0.44kg  (without battery)

10pcs/ctn

Net wight:7.2 kg ,Gross weight: 8.2kg

One gift box: 222x 140 x 74mm

Dimensions: 410mm x 310mm x 270mm [L/ W / H]
